Attackers don't always need sophisticated exploits. Often they just need one unpatched device. The FBI's 2024 IC3 Annual Report logged 859,532 complaints and $16.6 billion in reported losses, including a 9% jump in ransomware complaints.
The good news is that most network attacks exploit gaps that are well understood and fixable with the right layers in place.
In this blog, you will learn what network infrastructure security is, why it matters in 2026, the four types of network security, the most common threats, how IDS, IPS and next-generation firewalls differ, the steps to secure your network, and how to choose the right partner.
Key Takeaways
- Infrastructure is the foundation: Routers, switches, firewalls and servers carry all business data, so every other security control depends on them.
- Layers beat single products: Physical, technical, administrative and perimeter controls work together as defense in depth.
- Old devices are open doors: End-of-life and unpatched network gear is a favorite target, so patching and replacement plans matter.
- Segmentation limits damage: Separating guest, staff and server traffic stops one breach from spreading everywhere.
- Identity is part of the network: MFA, role-based access and same-day offboarding block the most common ways in.
- Someone has to watch: Around-the-clock monitoring turns alerts into action before an intrusion becomes a breach.
What Is Network Infrastructure Security?
Network infrastructure security is the set of policies, tools and practices that protect networking components from cyberattacks and unauthorized access. It works as a system of layered protections, not a single product.
Larger enterprises have dedicated IT security teams watching their networks around the clock. Most small and mid-size businesses don't, which makes them attractive targets.

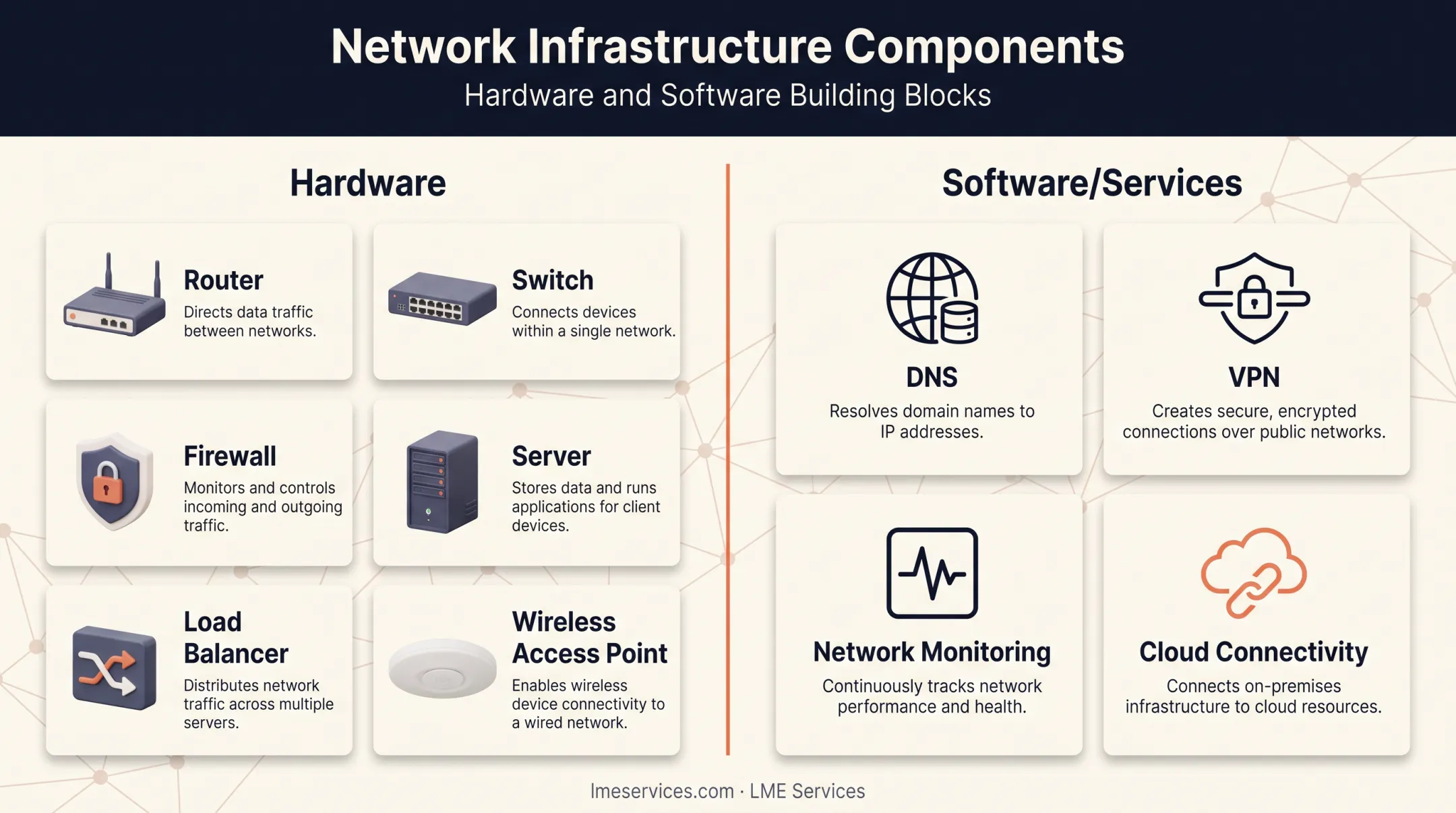

Network infrastructure usually includes these components:
1. Routers and Switches
These move traffic between devices and out to the internet. Default passwords and old firmware make them easy targets.
2. Firewalls
Firewalls filter traffic entering and leaving the network. Their rules decide what gets in, so they need regular review.
3. Servers
Servers store files, run applications and handle authentication. They hold much of what attackers want.
4. Wireless Access Points
Wi-Fi extends the network beyond cables. Weak settings or a shared password can let anyone nearby connect.

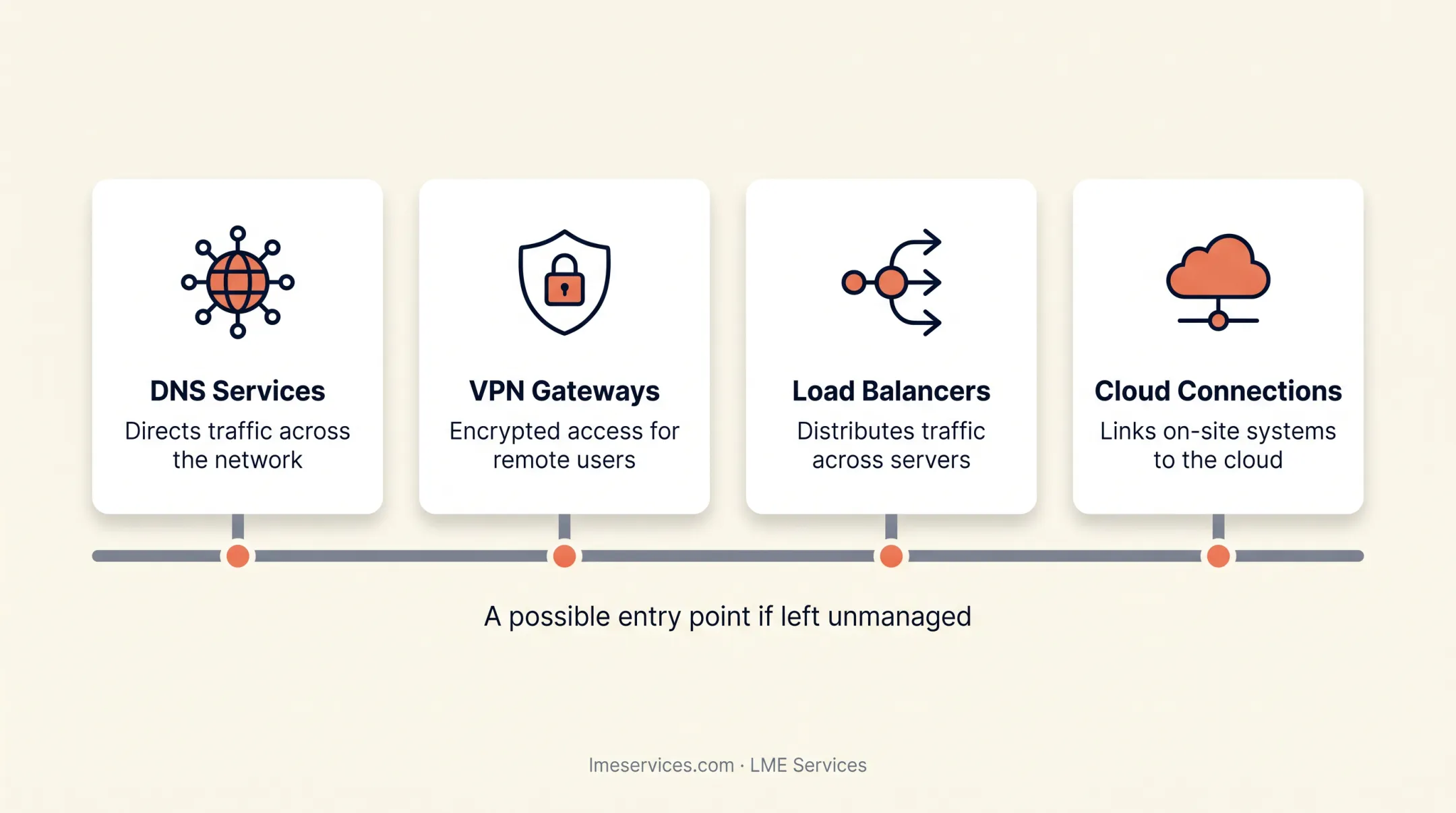

5. DNS, VPN and Cloud Connectivity
DNS services, VPN gateways, load balancers and cloud connections are the software side of the network. Each one is a possible entry point if left unmanaged.
Knowing what counts as infrastructure makes it easier to see why securing it matters so much now.
Why Does Network Infrastructure Security Matter in 2026?
Small businesses aren't flying under the radar. They're targeted because they're often easier to breach.
Businesses are prioritizing network security for several practical reasons:
1. Ransomware Hits Small Businesses Hardest
Verizon's 2025 Data Breach Investigations Report found ransomware in 88% of breaches at small organizations, compared with 39% at larger companies.

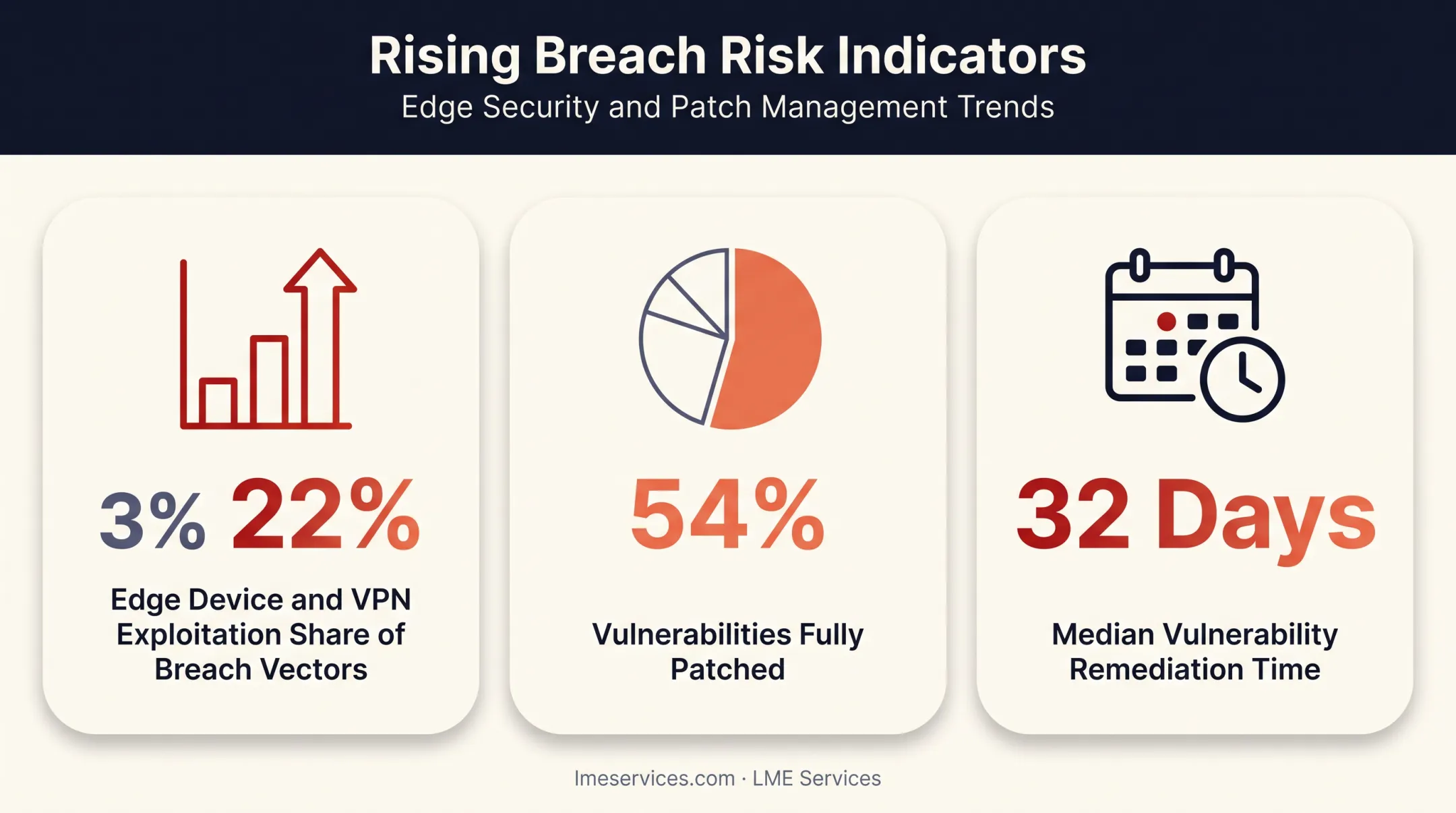

2. Edge Devices Stay Unpatched Too Long
In the same Verizon report, only about 54% of edge device vulnerabilities were fully remediated during the year, with a median of 32 days to fix them. That's a month-long window for attackers.
3. End-of-Life Gear Is Being Exploited
The FBI's August 2025 advisory warned that Russian state-sponsored actors exploited end-of-life networking devices and unpatched vulnerabilities, including a Cisco Smart Install flaw dating back to 2018, to collect configuration data from thousands of devices tied to U.S. organizations.

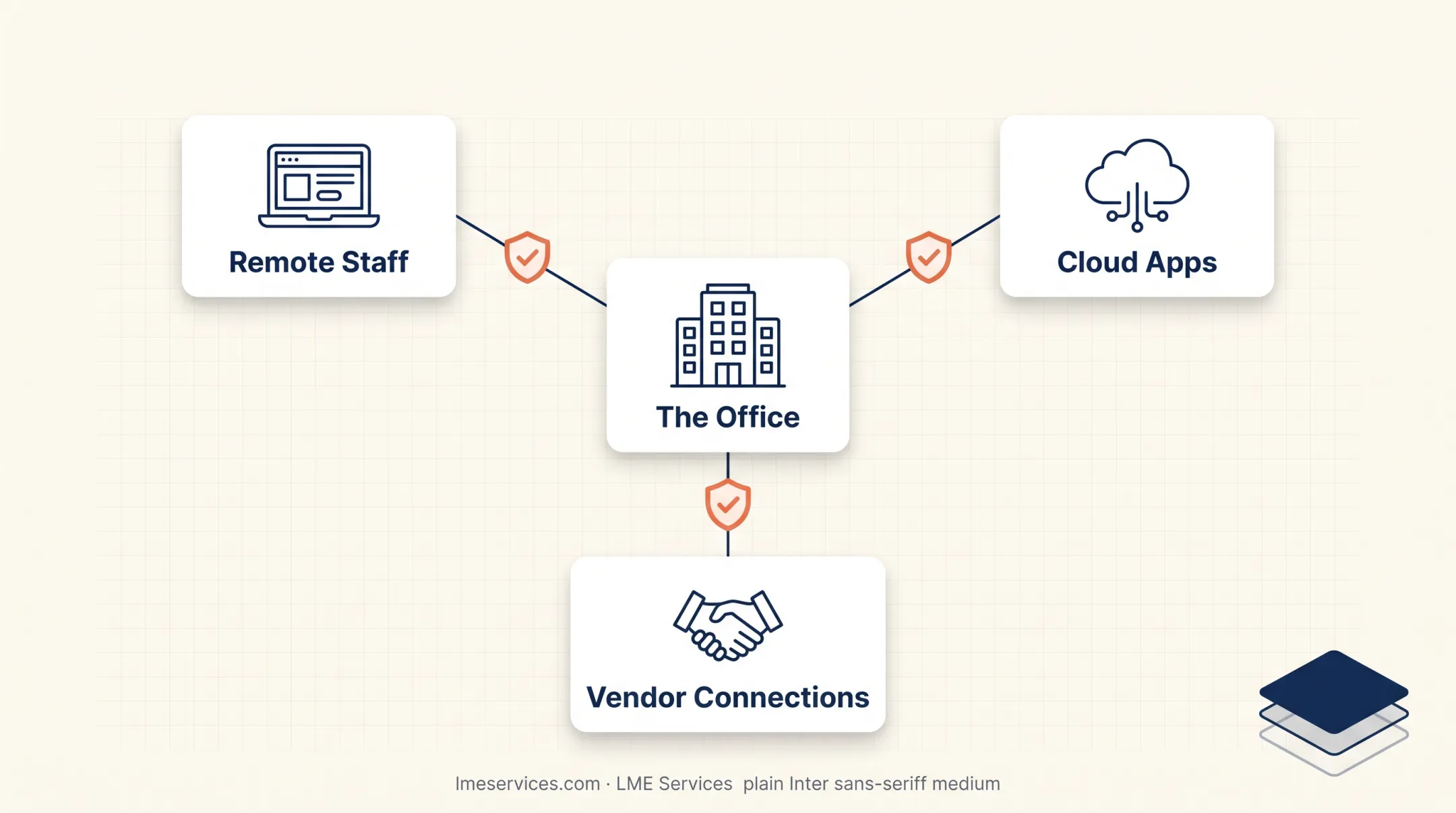

4. The Network No Longer Ends at the Office
Remote staff, cloud apps and vendor connections all extend the network. Each new connection needs the same protection as the office itself.
With the risks clear, the next step is understanding the layers that protect a network.

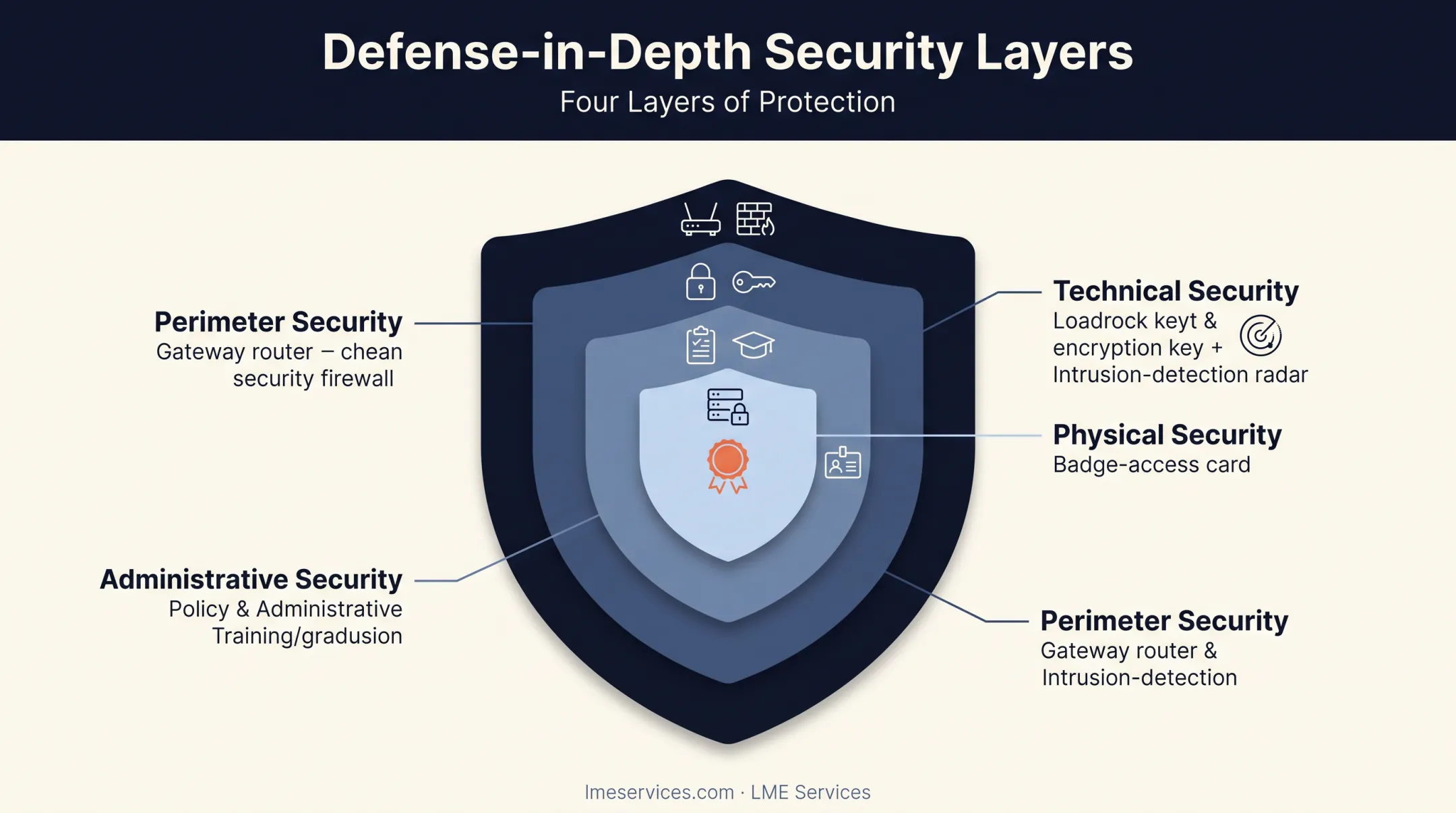

4 Types of Network Security
Strong network security relies on four layers working together, a model often called defense in depth.
Here are the four types to know:
1. Physical Security
This covers who can physically touch your equipment. Locked server rooms, restricted network closets and controlled access stop someone from plugging in a rogue device.
2. Technical (Logical) Security
This is the layer most people picture: firewalls, encryption, intrusion detection and prevention systems, and access controls that protect data as it moves.
3. Administrative Security
Policies and training. Staff need clear rules on device use, passwords and reporting suspicious activity, backed by short, recurring awareness training.
4. Perimeter Security
The outermost layer, where gateway firewalls and routers filter traffic before it reaches internal systems.
Here's how the layers work together in practice:
| Layer | Example Controls | What It Stops |
|---|---|---|
| Physical | Locked closets, access logs | Rogue devices and tampering |
| Technical | Firewalls, encryption, IDS/IPS, MFA | Malware, intrusions and stolen logins |
| Administrative | Policies, training, offboarding | Phishing and careless mistakes |
| Perimeter | Gateway firewalls, router ACLs | Unwanted inbound and outbound traffic |

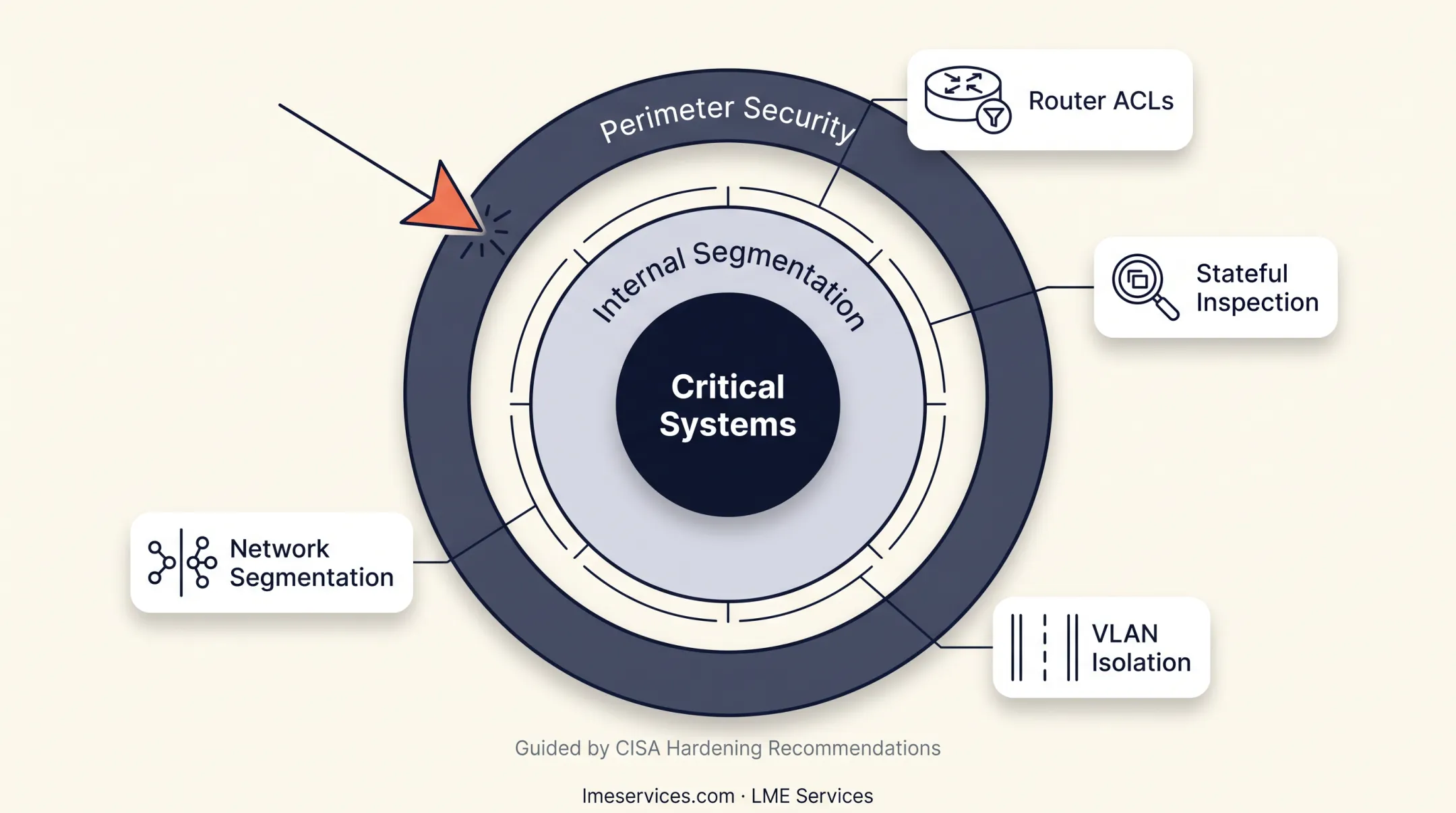

CISA's Enhanced Visibility and Hardening Guidance recommends combining router access control lists, stateful inspection, VLANs and segmentation. When each layer covers a gap the others miss, attackers need several failures to reach critical systems.
Once the layers are clear, it's easier to see which threats each one stops.
5 Common Threats to Network Infrastructure
Most attacks on business networks follow a handful of familiar patterns.
Here are the threats to plan for:
1. Malware and Ransomware
Malicious code enters through unpatched devices or phishing, then spreads to encrypt or steal data. Ransomware complaints rose 9% in the FBI's 2024 IC3 data.
2. Phishing and Social Engineering
Attackers trick employees into handing over credentials, then use them to walk through the front door with no exploit required.
3. Insider Threats
Employees with legitimate access can cause damage through negligence, such as clicking the wrong link, or through deliberate misuse.
4. DDoS Attacks
Attackers flood network resources with traffic, knocking systems offline and causing costly downtime.
5. Legacy and Unpatched Devices
Routers and switches are often treated as "set and forget." Old firmware and devices past end of support give attackers known, published weaknesses to use.
Understanding the threats makes it easier to compare the tools built to stop them.
Also Read: Top Network Security Monitoring Tools
IDS vs IPS vs Next-Generation Firewall: What's the Difference?
These terms get confused constantly, but the distinction affects how quickly a threat is stopped. Per NIST's official definitions, an intrusion detection system (IDS) watches and warns, while an intrusion prevention system (IPS) tries to stop the threat.
The table below lays out the main differences:
| Aspect | IDS | IPS | Next-Generation Firewall |
|---|---|---|---|
| Main job | Detects and reports suspicious traffic | Detects and blocks threats in real time | Filters traffic and combines several protections |
| Action taken | Alerts administrators only | Drops or blocks malicious traffic | Blocks by rule, application and threat signature |
| Placement | Watches a copy of traffic | Sits in the traffic path | Sits at the network edge |
| Risk of disruption | None, since it doesn't block | Can block legitimate traffic if poorly tuned | Depends on rule tuning |
| Needs human review | Yes, for every alert | Yes, for tuning and exceptions | Yes, for rules and logs |
| Best for | Visibility and investigation | Automated prevention | An all-in-one perimeter control |
To be fair, a standalone IDS is still valuable for visibility and investigations, even alongside other tools. Many businesses now rely on firewalls that combine detection and prevention in one device.
With the tools compared, you can put the right protections in place step by step.
6 Simple Steps to Secure Your Network Infrastructure
Securing a network doesn't have to happen all at once. A structured approach closes the biggest gaps first.
Here's how to approach it, step by step:
Step 1: Inventory Every Device
List every router, switch, firewall, server and access point, with firmware versions and end-of-support dates. You can't protect what you haven't documented.
Step 2: Patch or Replace Old Devices
Apply vendor updates quickly, and plan replacements for gear past end of support. Change every default password.
Step 3: Segment the Network
Isolate sensitive systems such as finance, customer data and production, and keep guest Wi-Fi separate. CISA recommends VLANs and DMZs for this purpose.
Step 4: Enforce MFA Everywhere
MFA blocks over 99.9% of account-compromise attacks, according to Microsoft's security research. Apply it to every account and remote access tool, not just admin logins.
Step 5: Encrypt Data in Transit and at Rest
Protect sensitive data wherever it lives or moves, from VPN connections to stored files and backups.

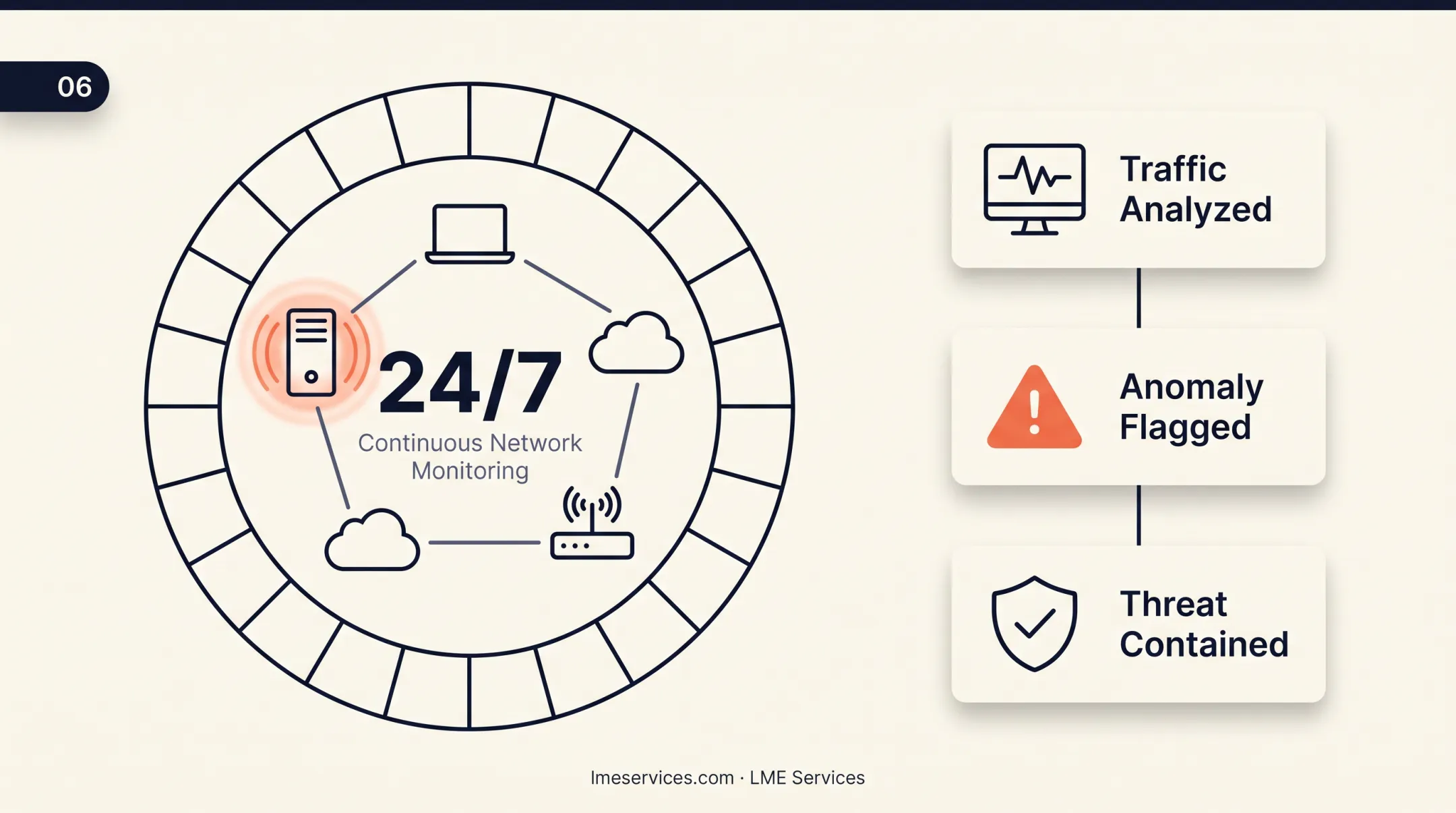

Step 6: Monitor Around the Clock
Threats don't wait for business hours. Continuous monitoring of network traffic catches suspicious activity before it becomes a full breach.
Also Read: Network Assessment Guide
With the basics in place, the final question is who helps you maintain them.
How to Choose a Network Security Partner?
Most small businesses don't have the staff to watch traffic 24/7, patch every device on schedule and track new threats. If you're looking for help, check these factors:
- Network design skills: The ability to build segmented, documented networks, not just install devices.
- Ongoing patching: A regular schedule for firmware and security updates across every device.
- 24/7 monitoring and response: Analysts who watch alerts around the clock and can act on them.
- Identity controls: MFA, role-based access and privileged access management built into the setup.
- Incident response planning: Documented steps, roles and notification requirements before anything goes wrong.
- Compliance support: Help preparing for HIPAA, SOC 2 or ISO requirements if they apply.
- Clear, predictable pricing: A scoped plan instead of unpredictable hourly bills.
Also Read: Cybersecurity Solutions for Small Businesses
Working through these factors helps you find a managed IT partner that keeps your network secure as it grows.
How LME Services Helps Businesses Secure Their Network Infrastructure
Many small and mid-size businesses run networks that grew one device at a time. Nobody has documented the setup, old gear is still in service, and there's no one watching the traffic after hours.
LME Services is a second-generation, family-run IT and cybersecurity provider based in Hoffman Estates, Illinois. Leon Engelking founded the company in 1994 after leaving IBM, and his son, CEO Joe Engelking, leads new business and client relationships today. Reflecting on three decades of work, Leon says: "Over the years, our business developed a reputation not just for the quality of service but for the way we provide it."
Network security services at LME include:
- Secured Network Solutions and IT Management
- Network Infrastructure Services and Solutions
- Managed Security Services for Safer Operations
- Managed Firewall Services for Safer Business
- IT Network Design Services
- Managed Wireless Services: Features
Here's what sets LME apart:
- Networks built to be secure: Network buildout includes a business-grade firewall configured for the business, business Wi-Fi access points, segmentation that keeps guest, staff and server traffic separate, and documented network diagrams.
- Proven modernization: Two clients, general contractor Northwest Contractors and property manager Hayes Properties, went through the same modernization. LME replaced old servers with SharePoint and added 2FA, Cisco Meraki Wi-Fi, a Cisco MX75 firewall and backup internet, which "cut maintenance costs while improving security."
- Layered protection in real deployments: Clients such as James G. Dades & Co. and a life sciences startup received a CATO cloud firewall, SOC-monitored endpoint protection and privileged access management.
- Identity controls: Every cybersecurity plan includes MFA on sensitive accounts, SSO, role-based access, same-day offboarding and privileged access management.
- 24×7 monitoring with response: A 24×7 SOC team and MDR watch for unusual logins, lateral movement and privilege escalation, and can isolate devices or disable compromised accounts fast.
- Simple for the client: Lara Cleary, Attorney/Partner at Hansen & Cleary, says: "They've helped optimize our technology and simplify it down to something that is easy for us to use."
- Plans for the bad day: Incident response planning covers containment steps, named roles, evidence preservation and notification requirements, including Illinois breach-notification rules.
This approach helps businesses turn a patchwork network into a documented, monitored foundation they can trust.
Conclusion
Network infrastructure security protects the routers, switches, firewalls and servers everything else depends on. What shapes your results is layered defense, consistent patching, segmentation, strong identity controls and around-the-clock monitoring.
Who you work with has a direct effect on those results. Documented designs, regular updates and real analysts watching the network often decide whether an old device becomes a breach or just a scheduled replacement.
If you're not sure how secure your network really is, connect with the LME Services team today for a free 15-minute consultation, and find out how to close the gaps in your network infrastructure.
Frequently Asked Questions
What are the four types of network security?
The four types are physical (control over hardware access), technical (firewalls, encryption and access controls), administrative (policies and training) and perimeter (gateway traffic filtering). Together, they create defense in depth.
What's the difference between IDS and IPS?
An IDS monitors network traffic and alerts administrators to suspicious activity without taking action. An IPS goes further by blocking threats in real time, and many modern firewalls combine both.
What are examples of network infrastructure?
Network infrastructure includes routers, switches, firewalls, servers, load balancers and wireless access points, along with services like DNS, VPNs and network monitoring tools.
How often should network infrastructure security be reviewed?
Most businesses benefit from at least an annual review, with more frequent checks in regulated industries such as finance or healthcare. Reassess after any major network change or security incident.
What is the first step to improving network infrastructure security?
Start with a complete inventory and a network security assessment to find existing vulnerabilities. That gives you a prioritized list of fixes, starting with the most serious gaps.
